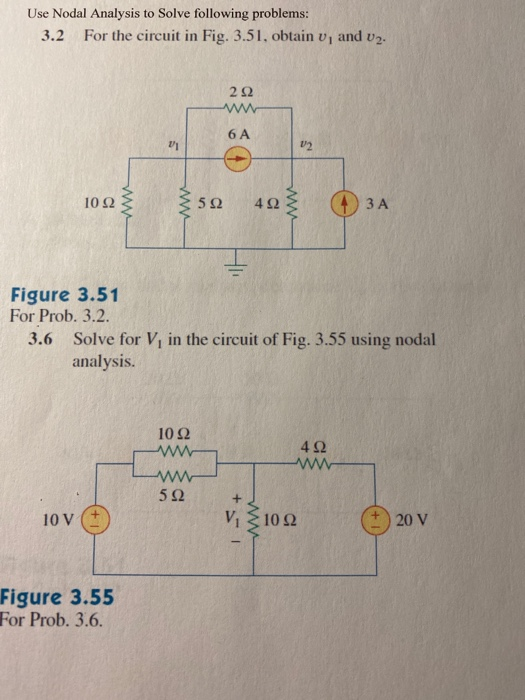

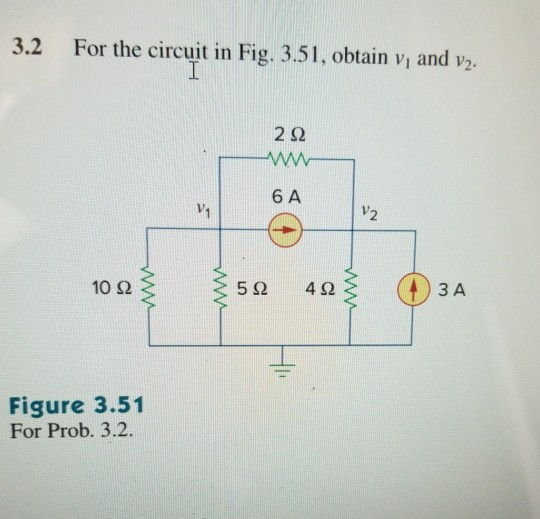

Question: 3.2 For the circuit in Fig. 3.51, obtain v1 and v2.3.6 Solve for V1 in the circuit of Fig. 3.55 using nodal analysis.3.11 Find Vo and the power dissipated in all the.

Access Fundamentals of Electric Circuits 3rd Edition Chapter 3 Problem 2P solution now. Our solutions are written by Chegg experts so you can be assured of the highest quality!

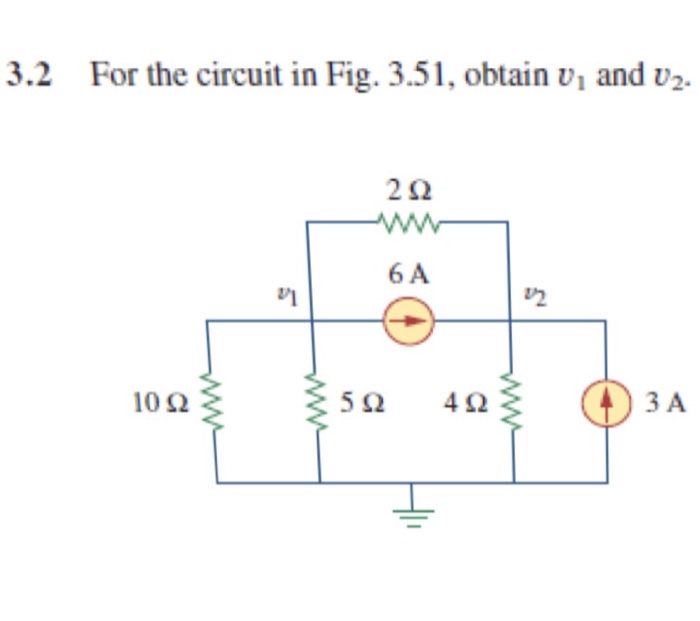

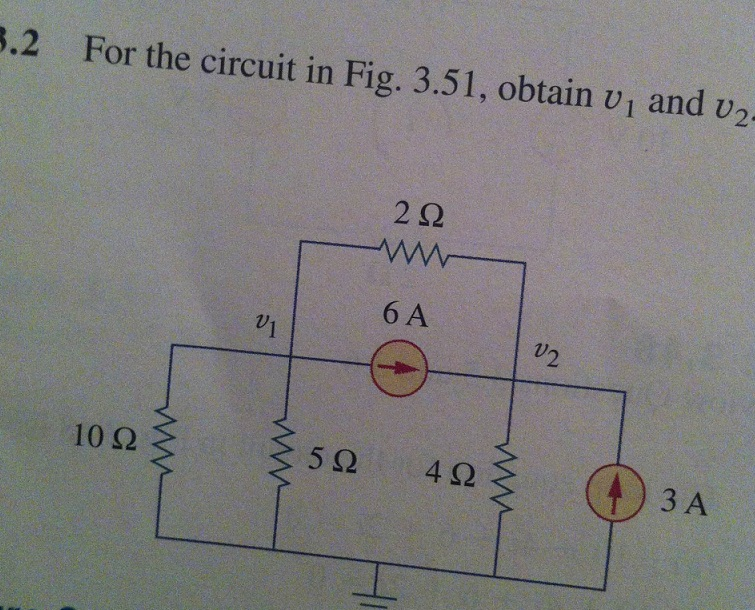

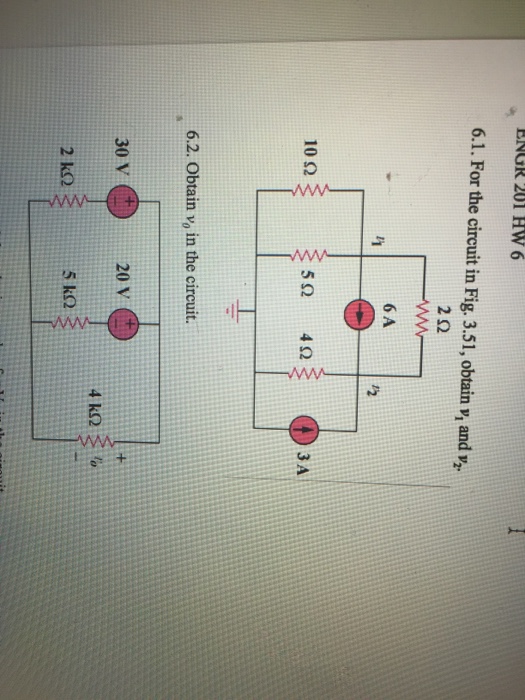

For the circuit in Fig. 3.51, obtain v1 and v2.

For the circuit in Fig. 3.51, obtain V1 and v2. For the circuit in Fig. 3.51, obtain V1 and v2. This is a sample answer. Please purchase a subscription to get our verified.

(Solved): For the circuit in Fig. 3.51, obtain v1 and v2.Figure 3.51 ... For the circuit in Fig. 3.51, obtain v1 and v2. Figure 3.51 . We have an Answer from Expert View Expert.

Question Transcribed Image Text: 3.32 Obtain the node voltages v1, v2, and vz in the circuit of Fig. 3.81. 5 k2 ww 10 V 20 V 4 mA 12 V 10 k2 igure 3.81 Tor Prob. 3.32. Expert.

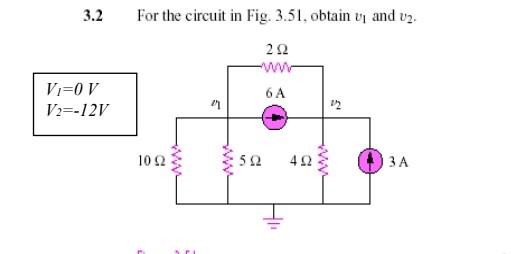

Figure 3.51 2 For the circuit in Fig. 3.51, obtain v1 and v2. Figure 3.51 Transcribed Image Text: 2Ω ЗА This problem has been solved! | See the answer Do you need an answer to.

Question Please answer and show solution. explain also why you come up with that solution and answer tysm Transcribed Image Text: 3.2 For the circuit in Fig. 3.51, obtain vị and.

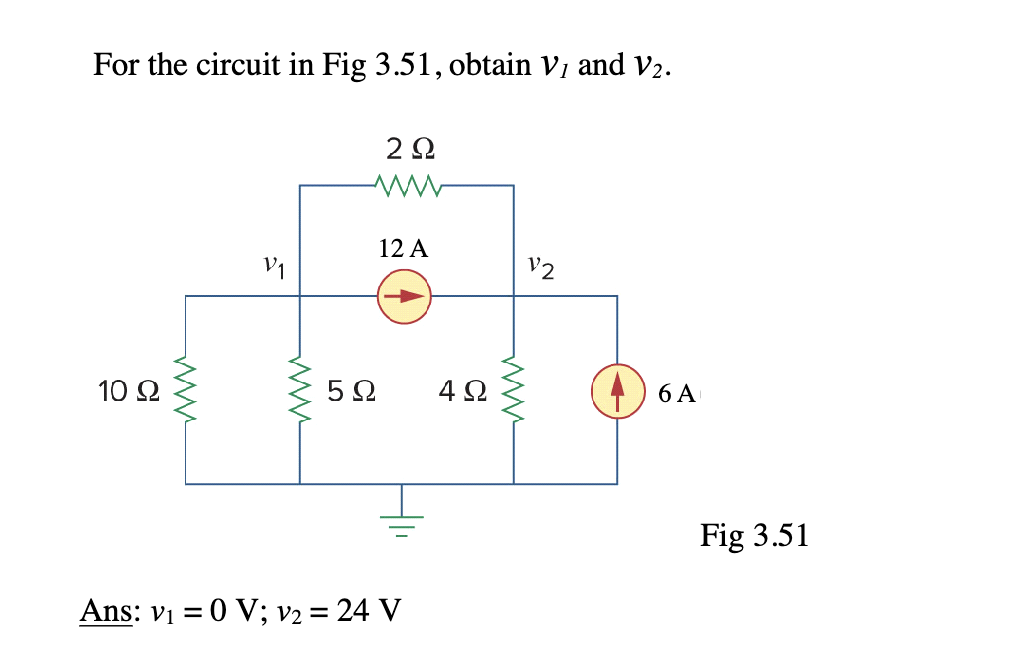

12 V+ Figure 3.50 For Prob. 3.1 and Prob. 3.39 3.2 For the circuit in Fig. 3.51, obtain vi and v2. 2 S2 6 A v1 2 10 2 552 42 ?? igure 3.51 or Prob. 3.2 This problem has.

Statement of a problem № 18477. next. For the circuit in Fig. 3.51, obtain v1 and v2. Figure 3.51. buy a solution for 0.5$. New search. (Also 5349 free access solutions)

VIDEO ANSWER: for the given circuit obtained B one and me to the given circuit is applying the kirchhoff voltage law at the note driven by 10 Plus we even by five Plus.

Expert Answer. 100% (1 rating) Step 1. Solution:- Applying the nodal method in the circuit. Writing the KVL equation at the node v 1. v 1 10 + v 1 5 + v 1 − v 2 2 + 6 = 0 v 1 + 2 v 1 +.

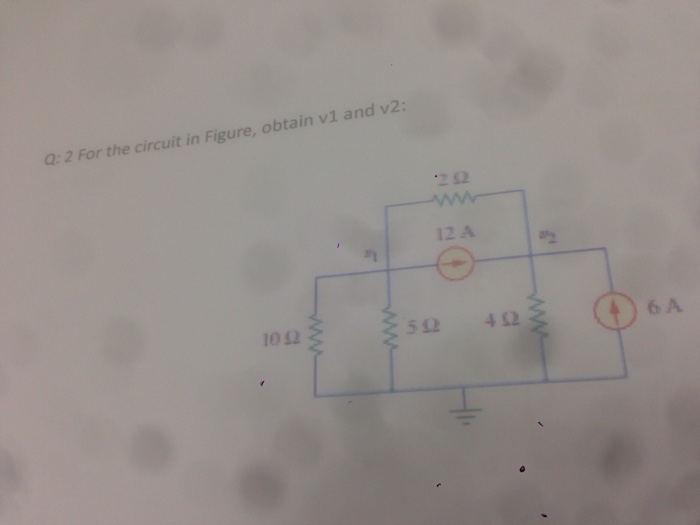

For the circuit in the Figure, obtain v_{1} and v_{2}. Step-by-Step. Verified Answer. Report Answer. This Problem has been solved. Unlock this answer and thousands more Step-by.

Question 1 Verified Maria can read 20 pages of economics in an hour. She can also read 50 pages of sociology in an hour. She spends 5 hours per day studying. a) Draw Maria's.

Ch. 3 - For the circuit in Fig. 3.69, find v1, v2, and v3... Ch. 3 - For the circuit in Fig. 3.70, find v1 and v2 using... Ch. 3 - Determine v1 and v2 in the circuit of Fig. 3.71.... Ch. 3 -.

This problem has been solved! You'll get a detailed solution from a subject matter expert that helps you learn core concepts. See Answer. Question: For the circuit in Fig. 3.51,.

Compute V, and Vz in the circuit of (Fig.3) by using mesh analysis method. arrow_forward. Obtain the node voltages in the circuit of Fig. 3.4. Answer: v1=2 V, v2=14 V..

Chapter 3, Problem 13. Calculate v1 and v2 in the circuit of Fig. 3.61 using nodal analysis. Figure 3.61 Chapter 3, Problem 16. Determine voltages v1 through v3 in the circuit of Fig..

Concept explainers Question Transcribed Image Text: For the circuit in Fig. 3.51, obtain vi and v2. ww 6 A 10 2 5Ω 4Ω ЗА ww Expert Solution Trending now This is a popular.

Step-by-Step Solutions University Majors Help Desk Login Share Question: For the circuit in the Fig. obtain { V }_ { 1 } and { V }_ { 2 } V 1andV 2. Step-by-Step Verified Answer.

Subscribe. 1.5K views 2 years ago LAS CRUCES. 3.56 (7 edition) Determine v1 and v2 in the circuit of Fig. 3.101 I would be feeling sincerely thankful if y'all can.
